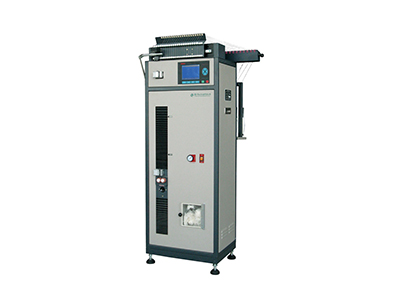

YG061Z Automatic Electronic Single Yarn Strength Tester
The tester adopts the CRE mechanism and controlled by microc-omputer.The results can be not only printed but also displayed with LCD.It can be choose test speed automatically and track the 10s or 20s timing breakage.Also the speed can be set freely when carrying out the constant speed elongation test.Pneumatic clamp is no harmful to yarn.The setting for collect waste yarn can make the lab clean.It can be connected with microcomputer and store the data forever.
Standards:GB/T3916、ISO2062、GB/T14344、GB/T398、GB/T5324 etc.
Technical parameter
| Type | YG061Z-30 | YG061Z-60 | YG061ZRaw-silk |
| Measurement range | 3000cN | 6000cN | Range of strength:0～999.9cN、0～6000cN |
| Guang | 250mm、500mm | ||
| Pre-tension | 1cN～100cN | ||
| Measure precision | ±0.5% | ||
| Range of elongation(500mm Guang) | Max80% | ||
| Drawing speed | 50mm/min～5000mm/min | ||
| Testing times | 1～400times | ||
| Interval print | 2～60setting range | ||
| Yarn density(tex) | 1～999.9setting range | ||
| Power supply | AC220V±10% 50Hz | ||
| Power | 280W | ||
| Air compression(for choice) | Operation pressure 0.4MPa～0.8MPa | ||
| Connect PC(for choice) | It can add more Fuctions | ||
Volume:555mm×430mm×1495mm
N.W.:121kg
Packing dimension:
700mm×580mm×1640mm(Mainframe)
528mm×448mm×308mm(Printer)
660mm×420mm×520mm(Accessories)
